Gardner Bender

Gardner Bender WireGard GB-2 Series 10-002 Wire Connector, Blue, 22 to 16 AWG Wire, Steel Contact, 100/BX

MPN: 10-002  •  SKU: 100046831  • UPC: 032076100025
Store SKU:  loading
Supplier SKU:  loading

loading

Promo Price:  loading

Volume Discounts
    Add To Cart
    Pinterest
    How Would You Like to Get It?
    Store Pickup / Curbside
    Check in-store availability · Ready same day
    FREE
    Ship to Me
    Standard shipping · 5–7 business days
    FREE
    Local Delivery
    Same-day in Boulder · Order before 2pm
    $9.99
    Need Help Choosing? Our Green Vest experts can walk you through options or recommend a local pro.

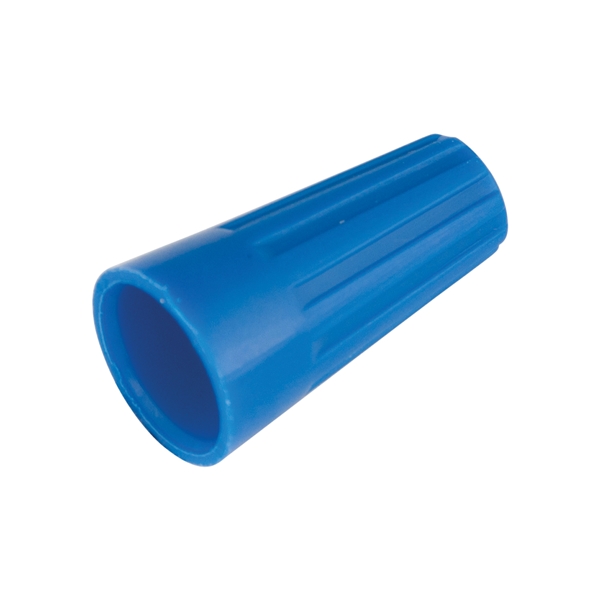

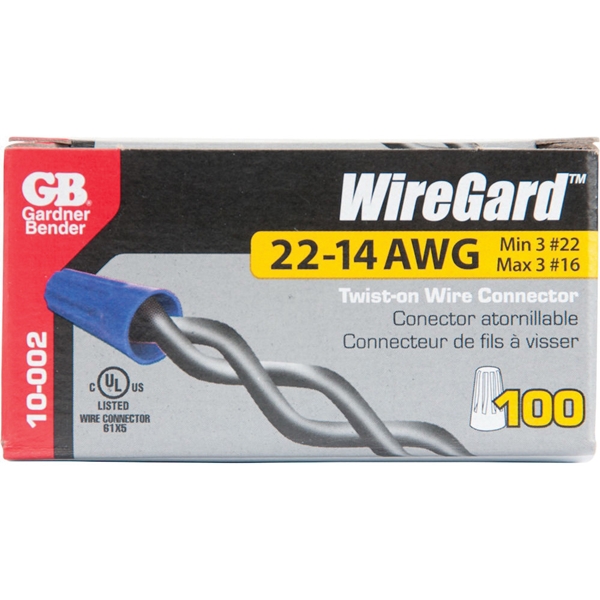

    Gardner Bender WireGard GB-2 Series 10-002 Wire Connector, Blue, 22 to 16 AWG Wire, Steel Contact, 100/BX

    Gardner Bender 10-002

    The industry's standard twist on connector with quality performance and durability. GB™ specifies this connector for a wire range of 22 to 16 AWG and recommends a wire combination of min (3) #22 wire and max (3) #16. It is blue in color for easy color code identification. Recommended for copper to copper connections only. Made from tough, thermoplastic shells which guard against hydrocarbons, diluted acid or alkaline solutions.

    Voltage Rating 300 V
    Wire Size 22 to 16 AWG
    Contact Material Steel
    Contact Coating Zinc
    Housing Material Polypropylene
    Color Blue
    Mounting Type Screw
    Length 25/64 in
    Width 25/64 in
    Height 45/64 in
    • Designed to require fewer turns to reach required torque and meet or exceed UL pull-out and dielectric test requirements

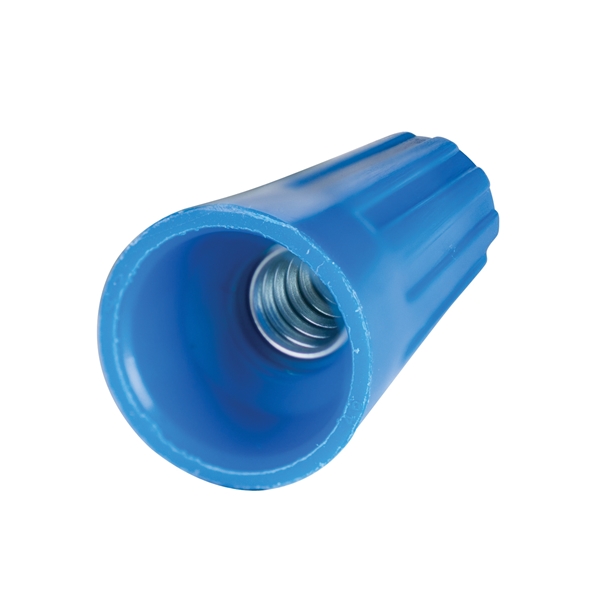

    • Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
    • Flame-retardant properties resist heat distortion up to 221 deg F
    • High-dielectric shell features deep skirt design to prevent exposure of bare wire
    • Rated at 300 V max
    • Copper to copper connections only
