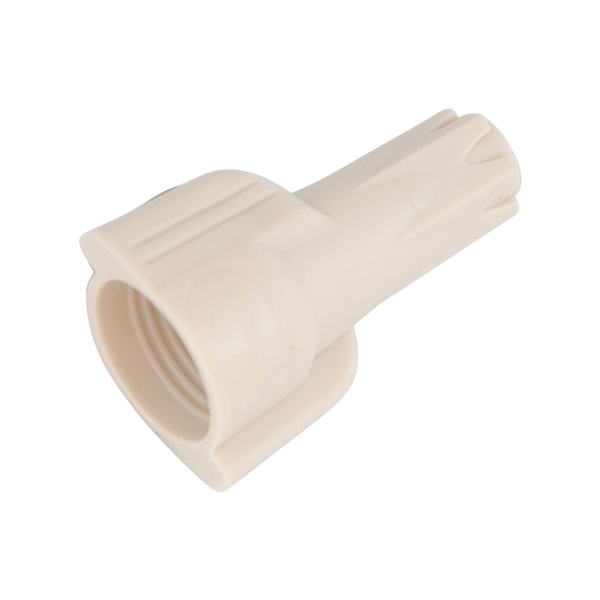

    Gardner Bender Hex-Lok 16-1H1N Wire Connector, Tan, 8 to 22 AWG Wire, Copper Contact, Thermoplastic Housing Material

    Gardner Bender 16-1H1N

    These multi-range hex head connectors cover 95% of everyday applications making them the simple choice for all of your wire connection needs. Don't worry about using a hex tool to install - you can't over-torque this connector because it's patented hex head design strips out at UL torque saving the wires and your fingers. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires.

    Voltage Rating 600 V
    Wire Size 8 to 22 AWG
    Contact Material Copper
    Housing Material Thermoplastic
    Color Tan
    Length 0.7344 in
    Width 5/16 in
    Height 1.1563 in
    • Hex head design allows for automatic or manual installation without stress distortion
    • Patented design can't be over torqued, strips out at UL torque
    • 5/16 in or 7/16 in hex driver installation option
    • Streamlined design for compact installations

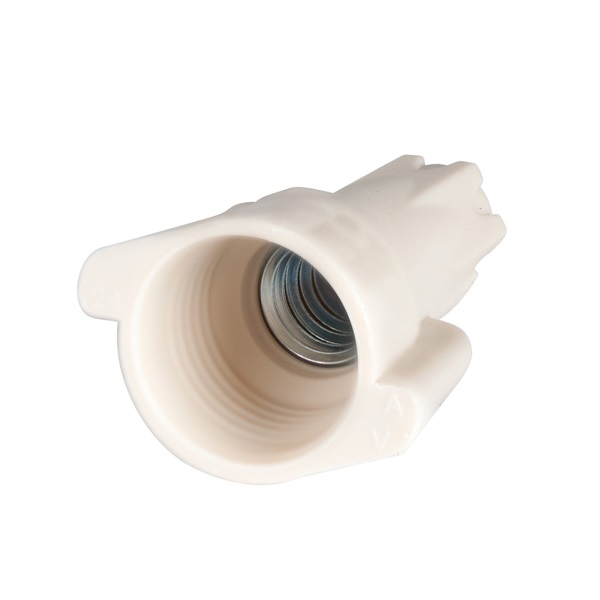

    • Square wire spring grabs and holds wires for secure connections
    • Long skirt covers stripped wires
    • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
    • Copper to copper connections only
