Gardner Bender

Gardner Bender Hex-Lok 19-1H1 Wire Connector, Tan, 22 to 8 AWG Wire, Copper Contact, Thermoplastic

MPN: 19-1H1  •  SKU: 100035669  • UPC: 032076024680
Store SKU:  loading
Supplier SKU:  loading

loading

Promo Price:  loading

Volume Discounts
    How Would You Like to Get It?
    Store Pickup / Curbside
    Check in-store availability · Ready same day
    FREE
    Ship to Me
    Standard shipping · 5–7 business days
    FREE
    Local Delivery
    Same-day in Boulder · Order before 2pm
    $9.99
    Need Help Choosing? Our Green Vest experts can walk you through options or recommend a local pro.

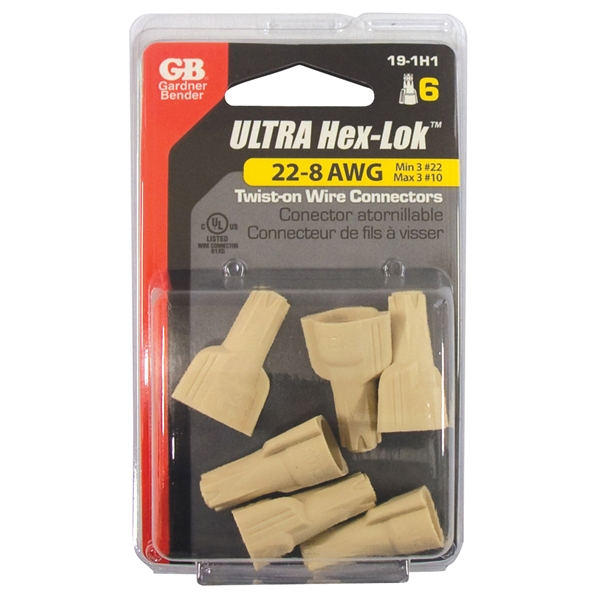

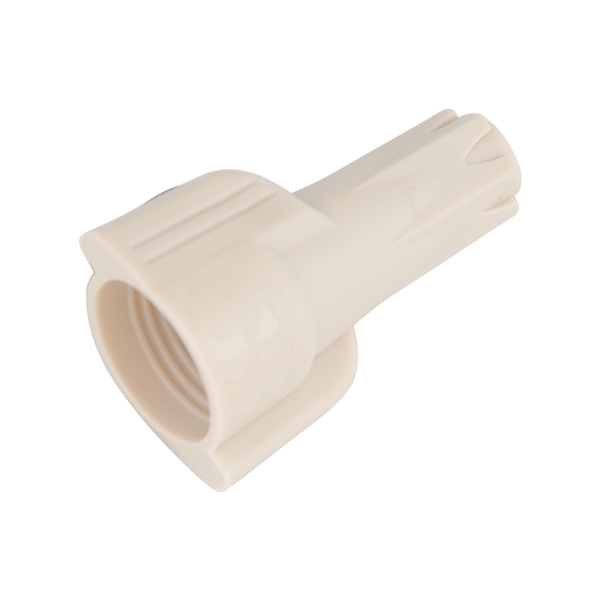

    Gardner Bender Hex-Lok 19-1H1 Wire Connector, Tan, 22 to 8 AWG Wire, Copper Contact, Thermoplastic

    Gardner Bender 19-1H1

    These multi-range hex head connectors cover 95% of everyday applications making them the simple choice for all of your wire connection needs. Don't worry about using a hex tool to install, you can't over-torque this connector because it's patented hex-head design strips out at UL torque saving the wires and your fingers. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires.

    Voltage Rating 600/1000 V
    Wire Size 22 to 8 AWG
    Contact Material Copper
    Housing Material Thermoplastic
    Color Tan
    Length 0.73 in
    Width 0.34 in
    Height 1.15 in
    • Hex head design allows for automatic or manual installation without stress distortion
    • Patented design can't be over torqued, strips out at UL torque
    • 5/16 in or 7/16 in hex driver installation option
    • Streamlined design for compact installations

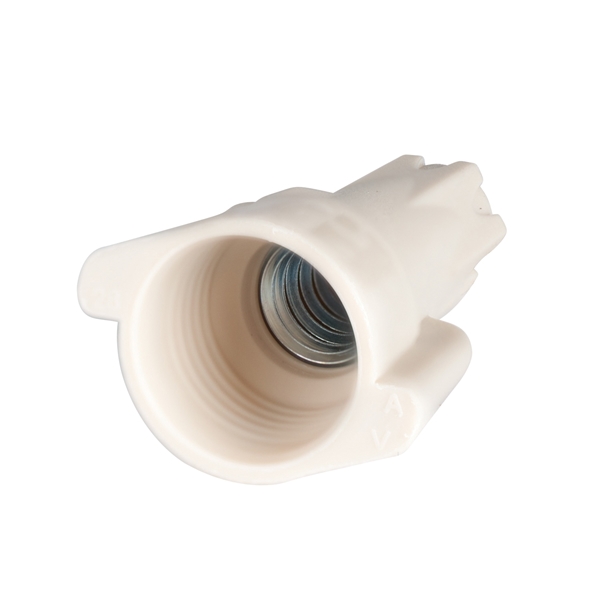

    • Square wire spring grabs and holds wires for secure connections
    • Long skirt covers stripped wires
    • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
    • Copper to copper connections only
