    Gardner Bender WingGard 89 10-089 Wire Connector, 14 to 6 AWG Wire, Steel Contact, Polypropylene Housing Material, 50/CT

    Gardner Bender 10-089

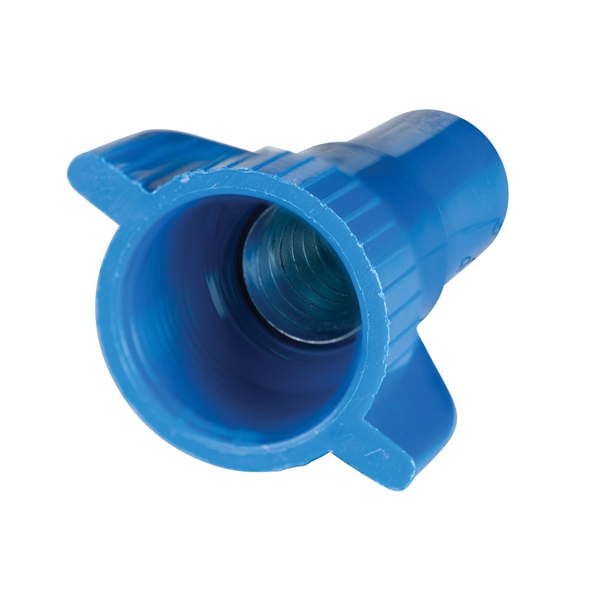

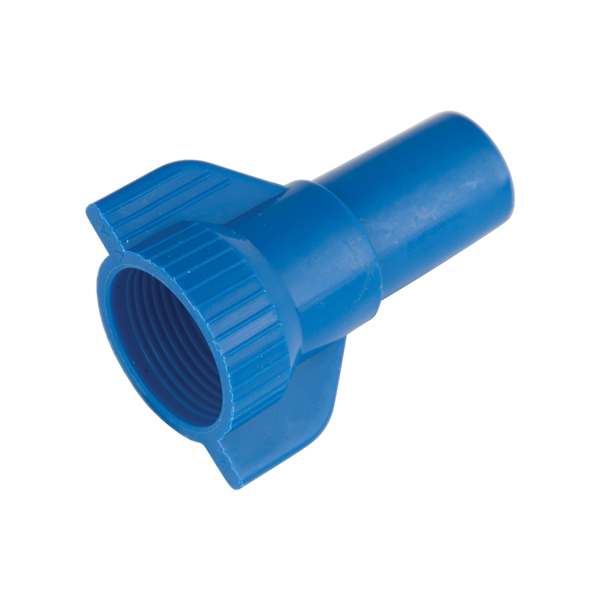

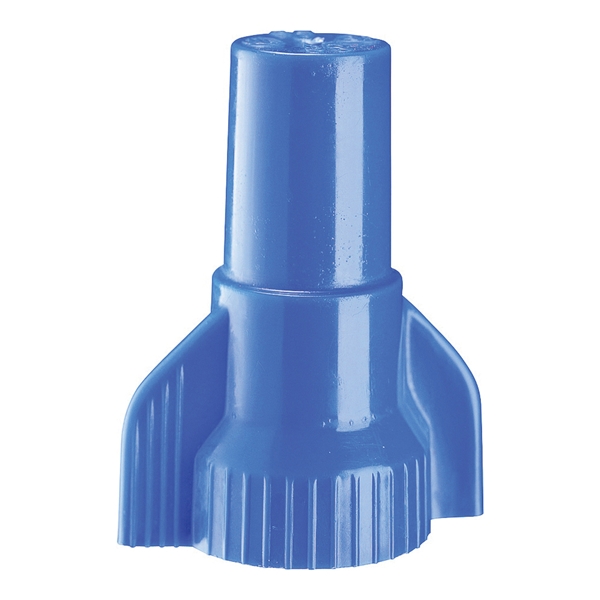

    GB's WingGard™ twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.

    Voltage Rating 300/600 V
    Wire Size 14 to 6 AWG
    Contact Material Steel
    Contact Coating Zinc
    Housing Material Polypropylene
    Color Blue
    Mounting Type Screw
    Length 1-1/2 in
    Width 1-1/4 in
    • Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
    • Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
    • Flame-retardant properties resist heat distortion up to 221 deg F
    • High-dielectric shell features deep skirt design to prevent exposure of bare wire
    • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
    • Copper to copper connections only
