Gardner Bender

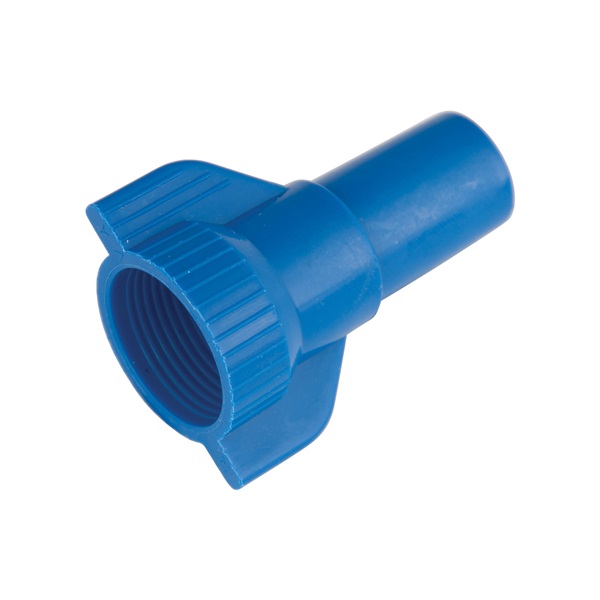

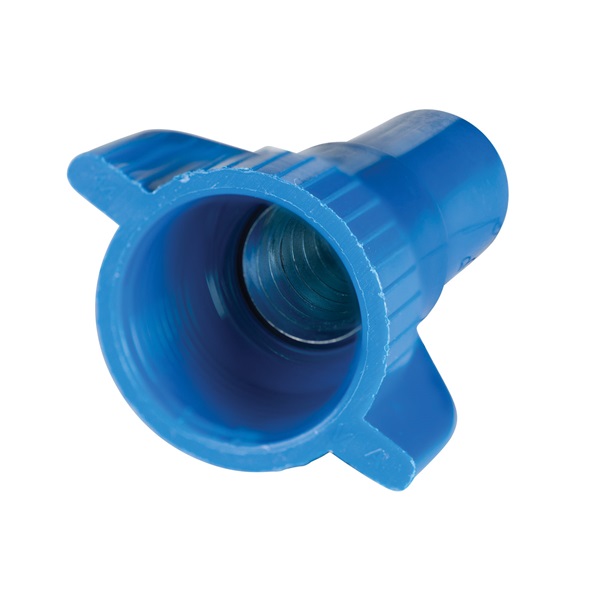

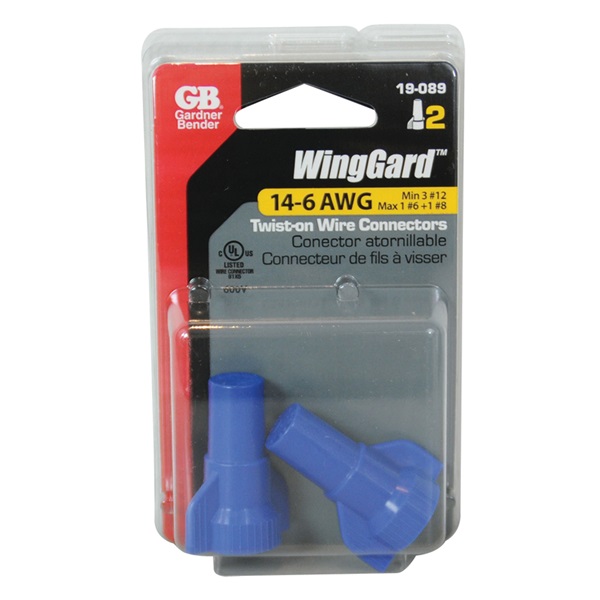

Gardner Bender WingGard 19-089 Wire Connector, 14 to 6 AWG Wire, Steel Contact, Thermoplastic Housing Material, Blue

MPN: 19-089  •  SKU: 100051922  • UPC: 032076190897
Store SKU:  loading
Supplier SKU:  loading

loading

Promo Price:  loading

Volume Discounts
    How Would You Like to Get It?
    Store Pickup / Curbside
    Check in-store availability · Ready same day
    FREE
    Ship to Me
    Standard shipping · 5–7 business days
    FREE
    Local Delivery
    Same-day in Boulder · Order before 2pm
    $9.99
    Need Help Choosing? Our Green Vest experts can walk you through options or recommend a local pro.

    Gardner Bender WingGard 19-089 Wire Connector, 14 to 6 AWG Wire, Steel Contact, Thermoplastic Housing Material, Blue

    Gardner Bender 19-089

    GB's WingGard™ twist on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one-size can do the job of Multi-ple standard connectors. The swept wings provide added turning torque and reduce the strain of Multi-ple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.

    Voltage Rating 300/600 V
    Wire Size 14 to 6 AWG
    Contact Material Steel
    Contact Coating Zinc
    Housing Material Thermoplastic
    Color Blue
    Mounting Type Screw
    Length 1-1/2 in
    Width 1-1/4 in
    • Wings are knurled for a sure grip and Offset from centerline for greater twisting leverage
    • Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
    • Flame-retardant properties resist heat distortion up to 221 deg F
    • High-dielectric shell features deep skirt design to prevent exposure of bare wire
    • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
    • Copper to copper connections only
