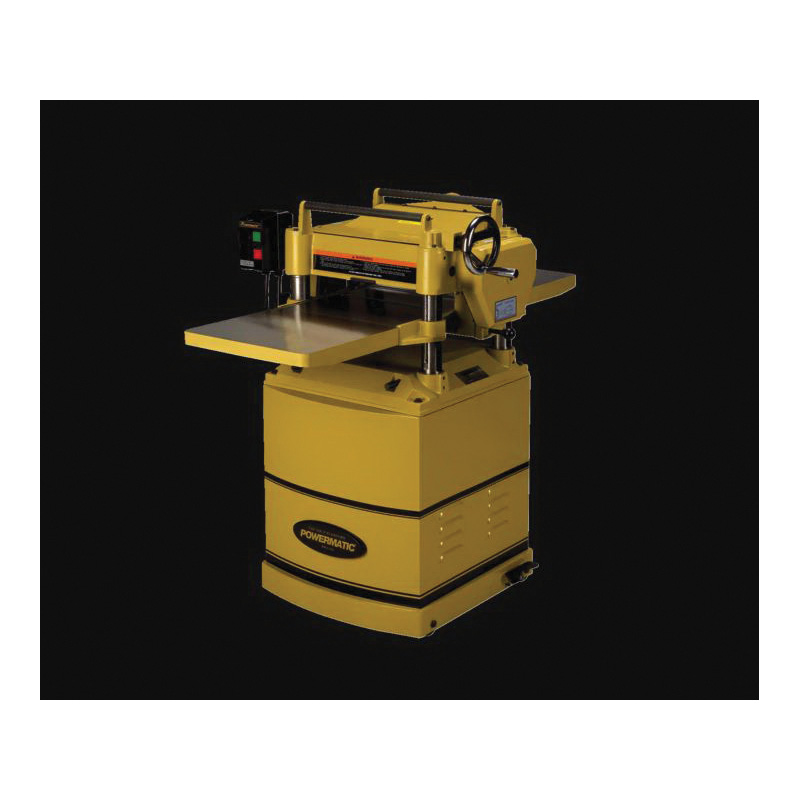

    Powermatic 1791213 Planer, 230 V, 30 A, 3, 1/4 in Max Cut D, 14-7/8 in Max Cutting W

    POWERMATIC 1791213

    The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3 hp motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4 in dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8 in maximum depth of cut and trouble-free operation. A two-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.

    Voltage Rating 230 V
    Current Rating 30 A
    HP Rating 3
    Maximum Cutting Depth 1/4 in
    Maximum Cutting Width 14-7/8 in
    Cutter Head Type Helical
    Cutter Head Speed 4500 rpm
    Cutter Head Size 2-7/8 in
    Dust Collect Port 4 in
    Table Length 48 in
    Table Width 15 in
    Housing Material Aluminum
    Housing Color Yellow
    • The helical cutterhead with 74 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
    • Three V-belts transfer maximum power to the cutterhead
    • Lockable built-in caster system allows for mobility in the shop
    • Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8 in maximum depth of cut and trouble free operation
    • Two-speed gearbox features automatic chain tensioner
    • Steel top-mounted return rollers speed repetitive cuts
    • Large, precision ground cast iron table and extensions provide maximum workpiece support
    • Large cast iron handwheel positions table quickly and easily
    • Angled dust chute with 4 in port positions collection hose away from the work area while providing efficient chip and dust collection
