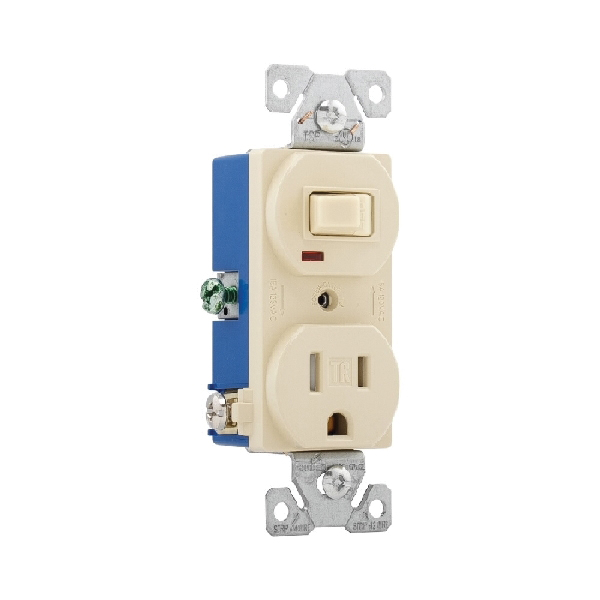

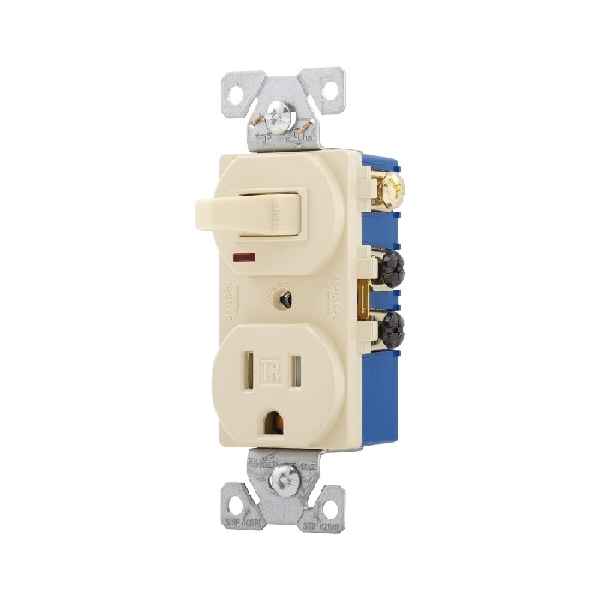

    Eaton TR274V Combination Switch, 1-Pole, 15 A, 120/125 V, NEMA: NEMA 5-15R, Ivory

    EATON TR274V

    Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is on when switch is on. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and back body are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide Great ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.

    Voltage Rating 120/125 V
    Current Rating 15 A
    Number of Poles 1
    Number of Wires 3
    Wiring Type Back, Side
    Wire Size 14 to 12 AWG
    Contact Material Brass
    Terminal Type Screw
    NEMA Configuration NEMA 5-15R
    Operating Temperature -20 to 60 deg C
    Mounting Type Flush
    Material PVC/Thermoplastic
    Color Ivory
    Dimensions 1.3 in L x 1.08 in W x 4.19 in H
    Suitable For Receptacle, Toggle Switch
