SOUTHWIRE

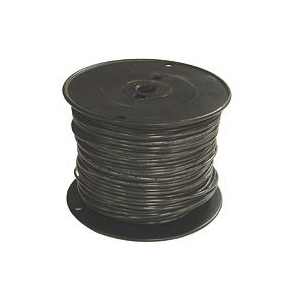

Southwire 22964101 Building Wire, Black Sheath, 12 AWG Wire, 1-Conductor, 500 ft L, 0.128 in Dia Sheath
- Model Number: 22964101
- UPC: 098359229005
-
Store SKU:
-
Southwire 22964101 Building Wire, Black Sheath, 12 AWG Wire, 1-Conductor, 500 ft L, 0.128 in Dia Sheath
-
Promo Price:
-
Volume Discounts
-
-
Supplier SKU:
- Web SKU: 100080140
-
Supplier SKU:
SOUTHWIRE 22964101
Southwire Building Wire, THHN, Wire Size: 12 AWG, 500 ft L, Number of Conductors: 1, Strands per Conductor: 19, Conductor Material: Copper, Conductor Insulation: PVC, Stranded/Solid: Stranded, Sheath Material: Nylon, Sheath Color: Black, Sheath Diameter: 0.128 in, 600 V, 20 A, Operating Temperature: 194 deg F
| Type | : | THHN |
| Wire Size | : | 12 AWG |
| Length | : | 500 ft |
| Number Of Conductors | : | 1 |
| Strands per Conductor | : | 19 |
| Conductor Material | : | Copper |
| Conductor Insulation | : | PVC |
| Stranded/Solid | : | Stranded |
| Sheath Material | : | Nylon |
| Sheath Color | : | Black |
| Sheath Diameter | : | 0.128 in |
| Voltage Rating | : | 600 V |
| Current Rating | : | 20 A |
| Resistance | : | Gasoline, Heat, Moisture, Oil |
| Operating Temperature | : | 194 deg F |
Specification Sheet
